Lintec Antennas

Designers and Manufacturers of  Professional and Commercial Antennas



Yagi Antennas - Rigid



Intended for fixed or mobile use on outside broadcasts or location work, these are commonly used to increase reception range with radio microphone systems and program links. Note that by the principle of reciprocity, similar range increases would be obtained by using the antennae at the transmit end, but this is not recommended since it will probably increase the effective radiated power beyond the licensed level. They are available with several centre frequencies and suitable for reception & transmission up to 50 watts.

Substantially constructed from aluminium, the Yagis can be supplied with a fly lead with the length and connector of your choice, or an inbuilt connector. The inbuilt connectors tend to be BNC or N Type female. Other connectors are available, but may need to be added using an extension cable.

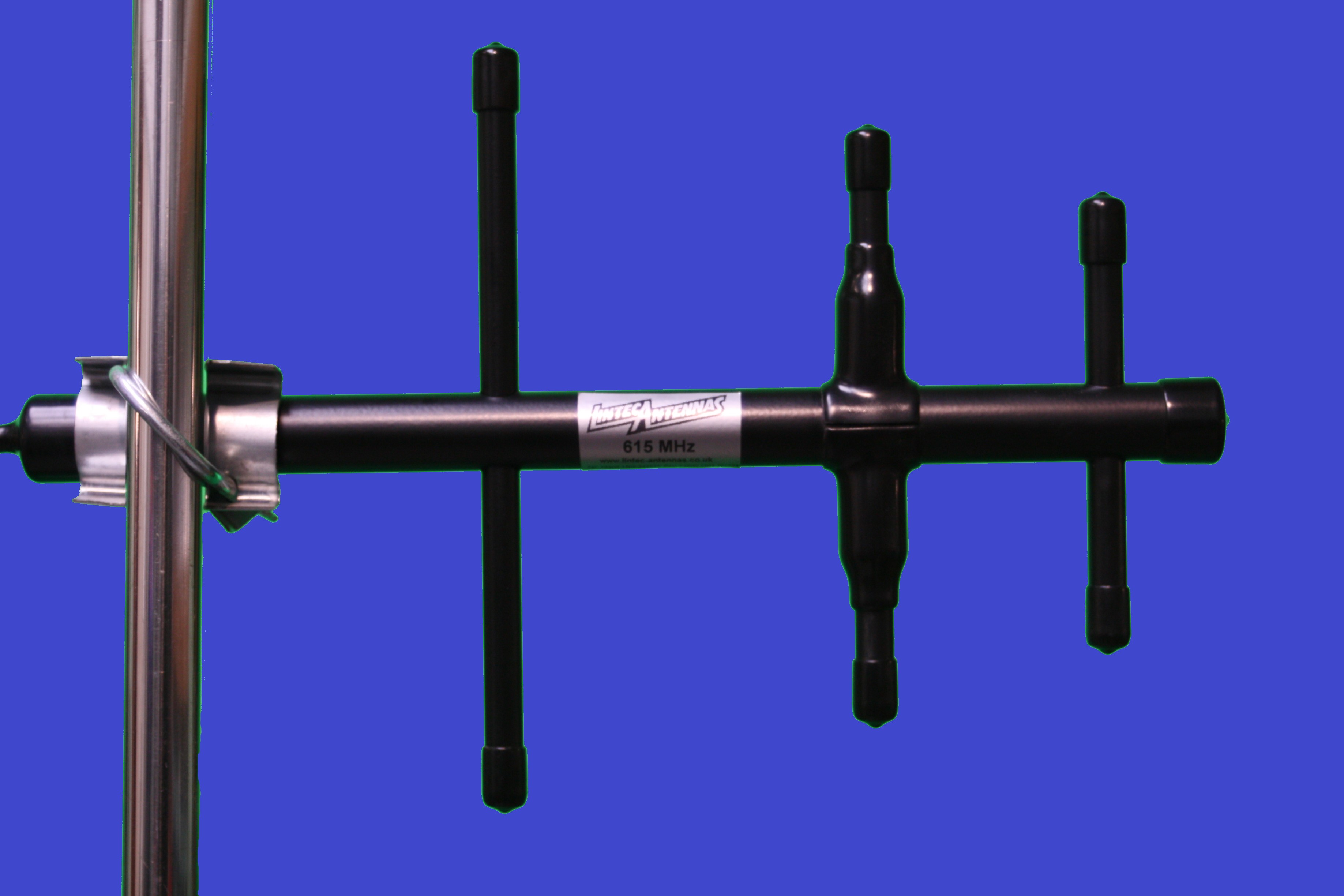

The Yagi’s can also be powder coated black for an additional cost, this is largely popular to help camouflage the Yagis in studios.

Specifications
Placeholder Picture

Frequencies

138-900 MHz

Impedance

50 Ohms

Bandwidth

+/- 5 MHz

Beam Width

80-90 degree

Front to Back Ratio

10-20 Db

Gain (over dipole)

3-6 Db

Connector

As Specified

Cable Length

As Specified

Weight

550-650g

Placeholder Picture
