Lintec Antennas

Designers and Manufacturers of  Professional and Commercial Antennas

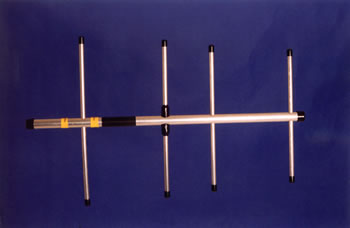

Yagi Antennas - 4 Element



Specifications
Placeholder Picture

Frequencies

218-479 MHz

Impedance

50 Ohms

Bandwidth

+/- 5 MHz

Beam Width

80 degree

Front to Back Ratio

14 Db

Gain (over dipole)

7 Db

Connector

As Specified

Cable Length

As Specified

Weight

440g

Placeholder Picture

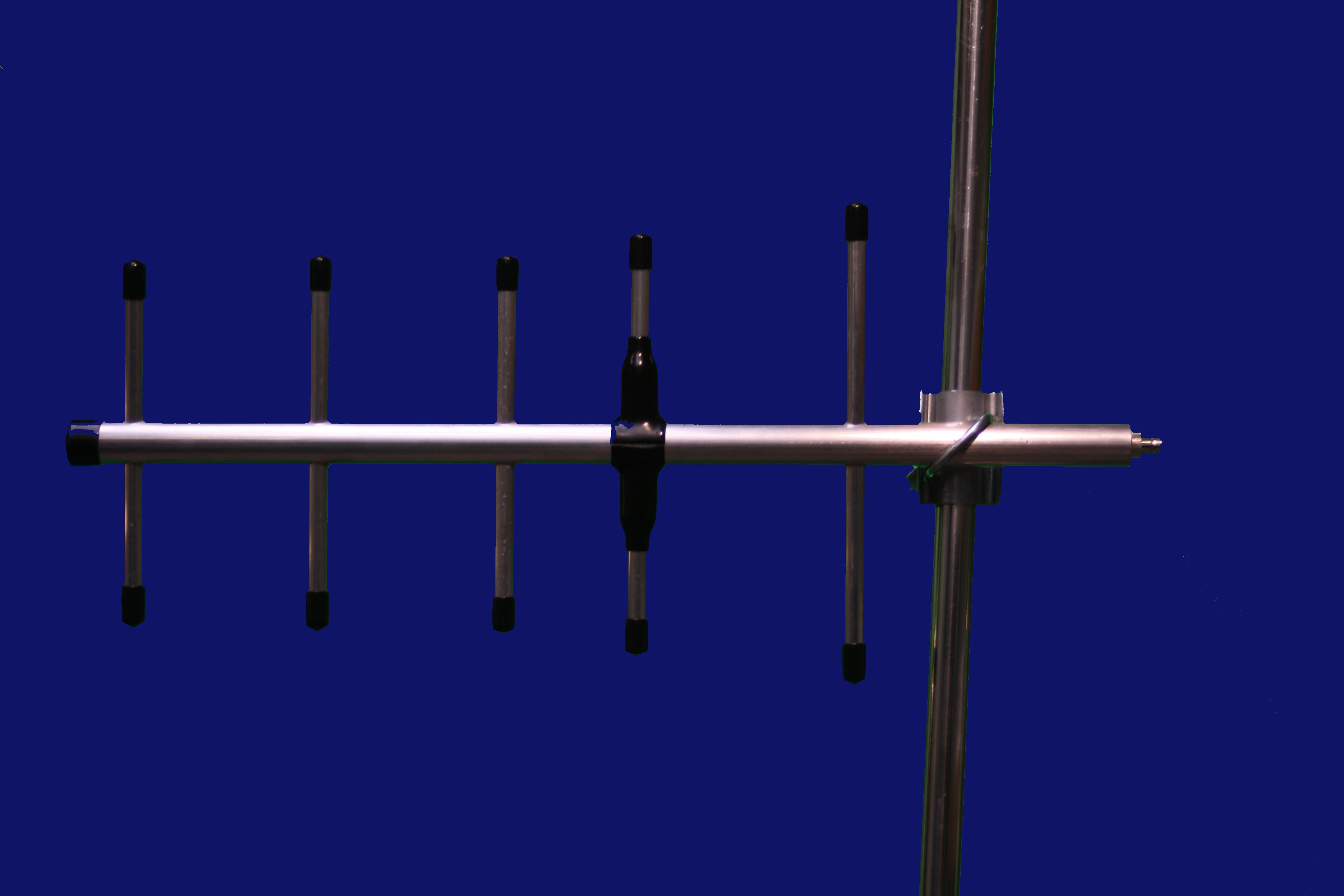

Yagi Antennas - 5 Element



Specifications
Placeholder Picture

Frequencies

432-1026 MHz

Impedance

50 Ohms

Bandwidth

+/- 10 MHz

Beam Width

60 degree

Front to Back Ratio

14 Db

Gain (over dipole)

8 Db

Connector

As Specified

Cable Length

As Specified

Weight

400-420g

Placeholder Picture
