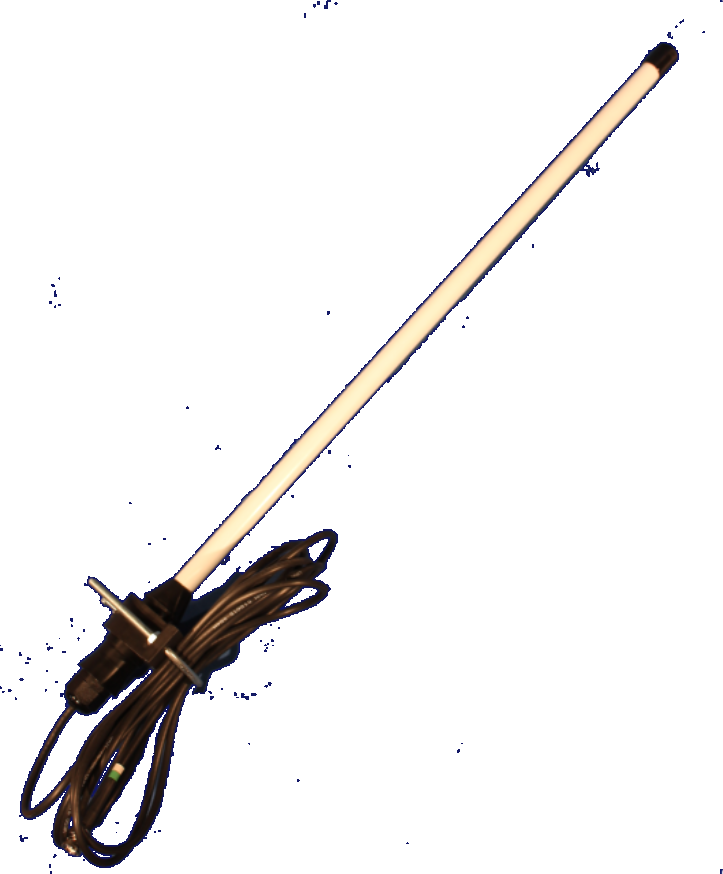

J-Pole Antennas



The J-Pole antenna is another popular form of vertical antenna that operates on the VHF bands and which can be used on almost any frequency.

The antenna is supplied with an antenna wall bracket.

The Lintec J-Pole antenna is more commonly supplied with a connector and fly-lead length of your choice, however it can also be supplied with an in-built connector. These connectors tend to be a BNC or "N" type female, but other connectors are available (although they may need to be added using an extension cable).

Specifications
Placeholder Picture

Frequency Range

150-950 MHz

Impedance

50 Ohms

Bandwidth

As Specified

VSWR

<0 2:1

Maximum Power

50 Watts

Polarisation

Vertical

Gain

0-4 Db

Front To Back Ratio

0-6 Db

Connector

As Specified

Cable Length

As Specified

Weight

240-340g

Length

37-110cm

Width At Widest Point

11cm
