Ground Plane Antennas



The Lintec Ground Plane antenna series are ground independent, 0 Db gain, base station antenna covering the frequency bands between 400 - 1000 MHz. Due to the angle of the radials, it emits maximum radiation at the horizon, ensuring a maximum omni-directional range. The ground impedance maintains a stable radiation pattern in all fixed mounting applications. Its robust construction ensures excellent longevity and performance.

Ideal for mounting in applications where ground plane area is non-existent or severely reduced.

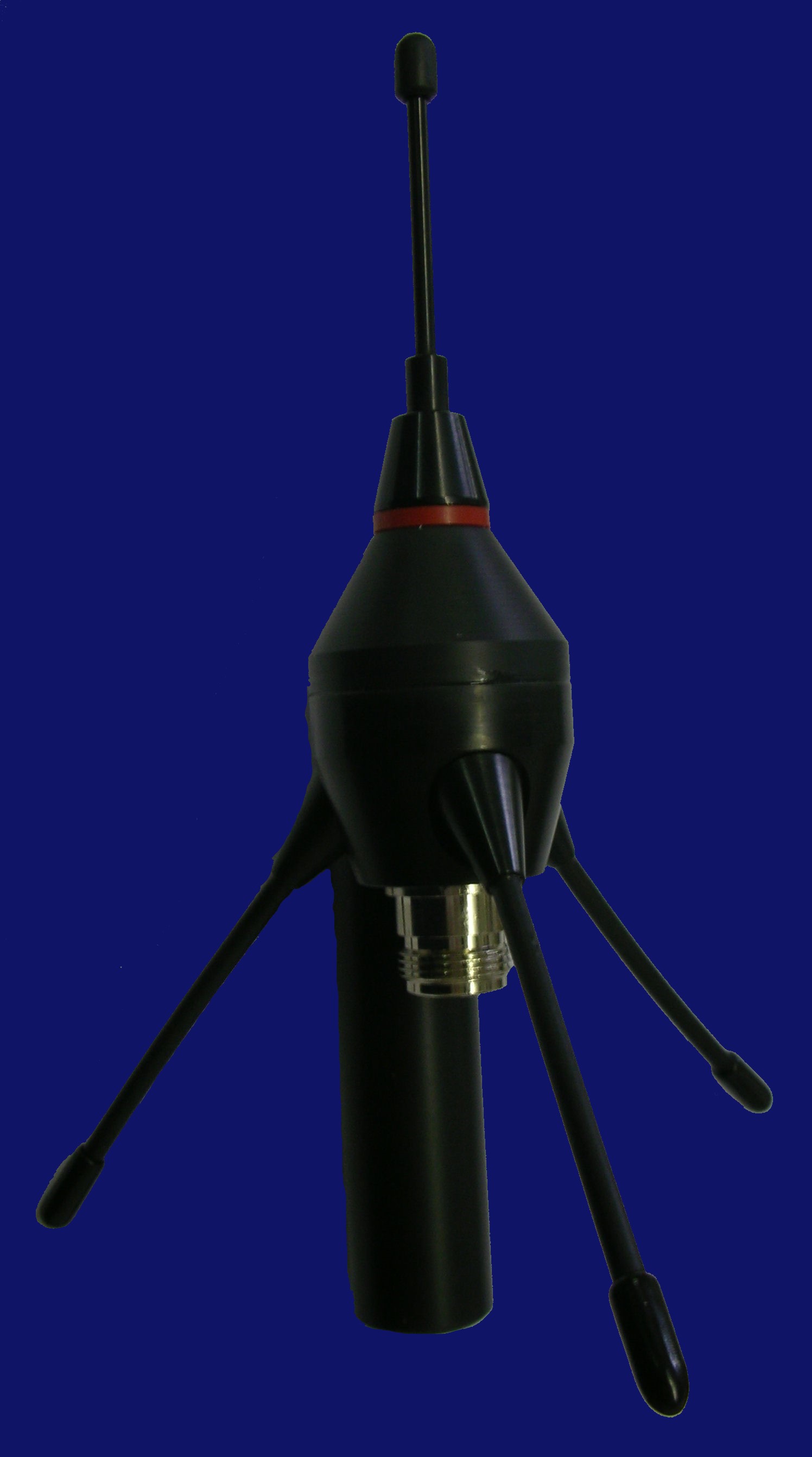

This is a compact arrangement of three 'legs' (radials) radiating outwards and slightly downwards from a central connector with a radiating element pointing upwards.

Specifications
Placeholder Picture

Frequency Range

400-1000 MHz

Impedance

50 Ohms

Bandwidth

+/- 8% of centre frequency

VSWR

<1.5:1

Maximum Power

50 Watts

Polarisation

Vertical

Gain

0 Db

Construction Casing

Delrin/Brass

Connector

"N" type female

Cable Length

As Specified
