Dipole Antennas



The Lintec Dipole is one of the most popular antennas within the broadcast business, either on location or within studios.

Most Dipoles can be made to any frequency as specified by our customers. They can be supplied with a fly lead with th elength and connector of your choice, or an in-built connector; these are generally of a BNC or "N" type female type. Other connectors are available, but may need to be added using an extension cable.

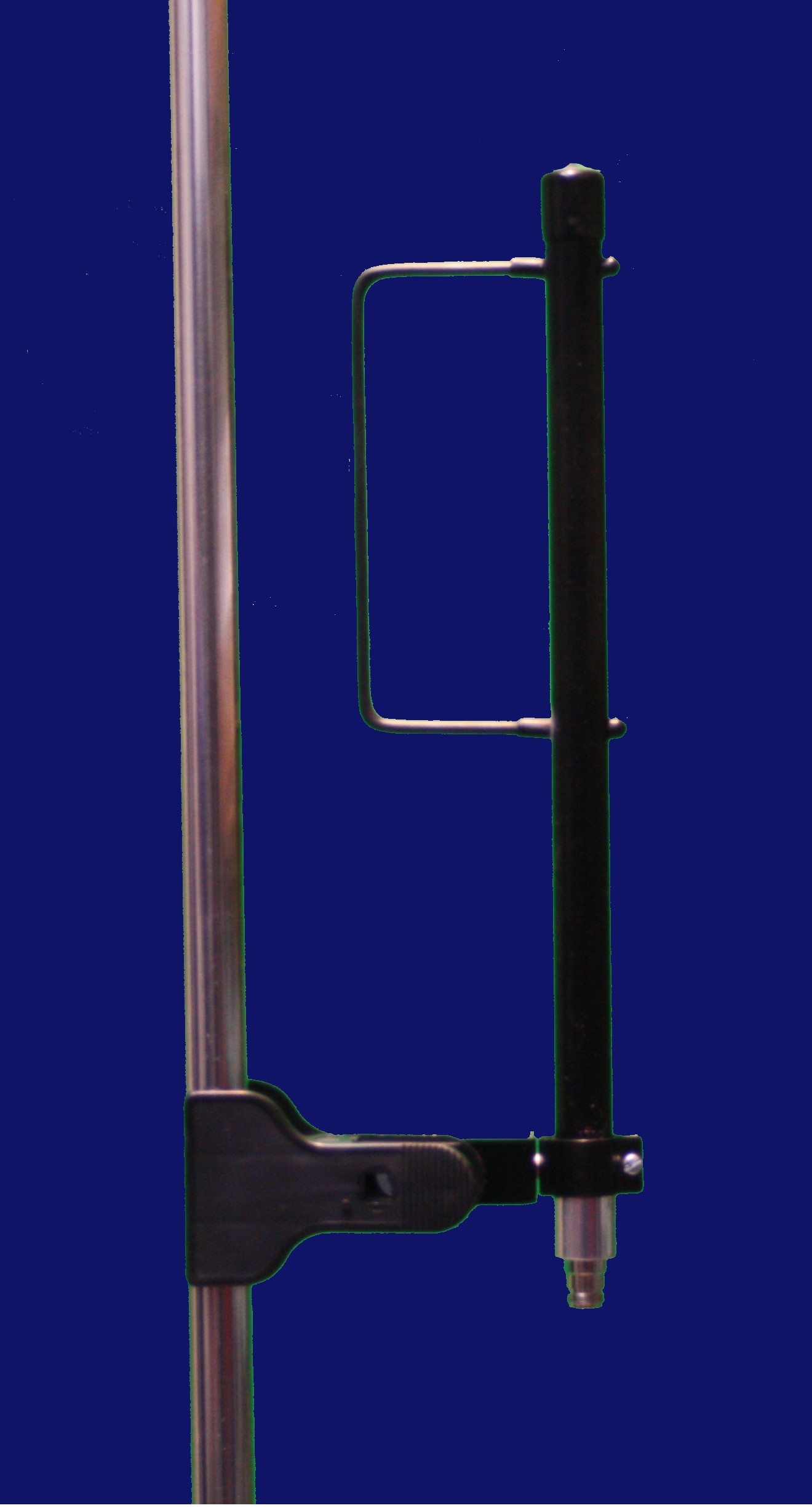

The Dipole with an in-built reflector is directional and gives a gain of up to 4Db.

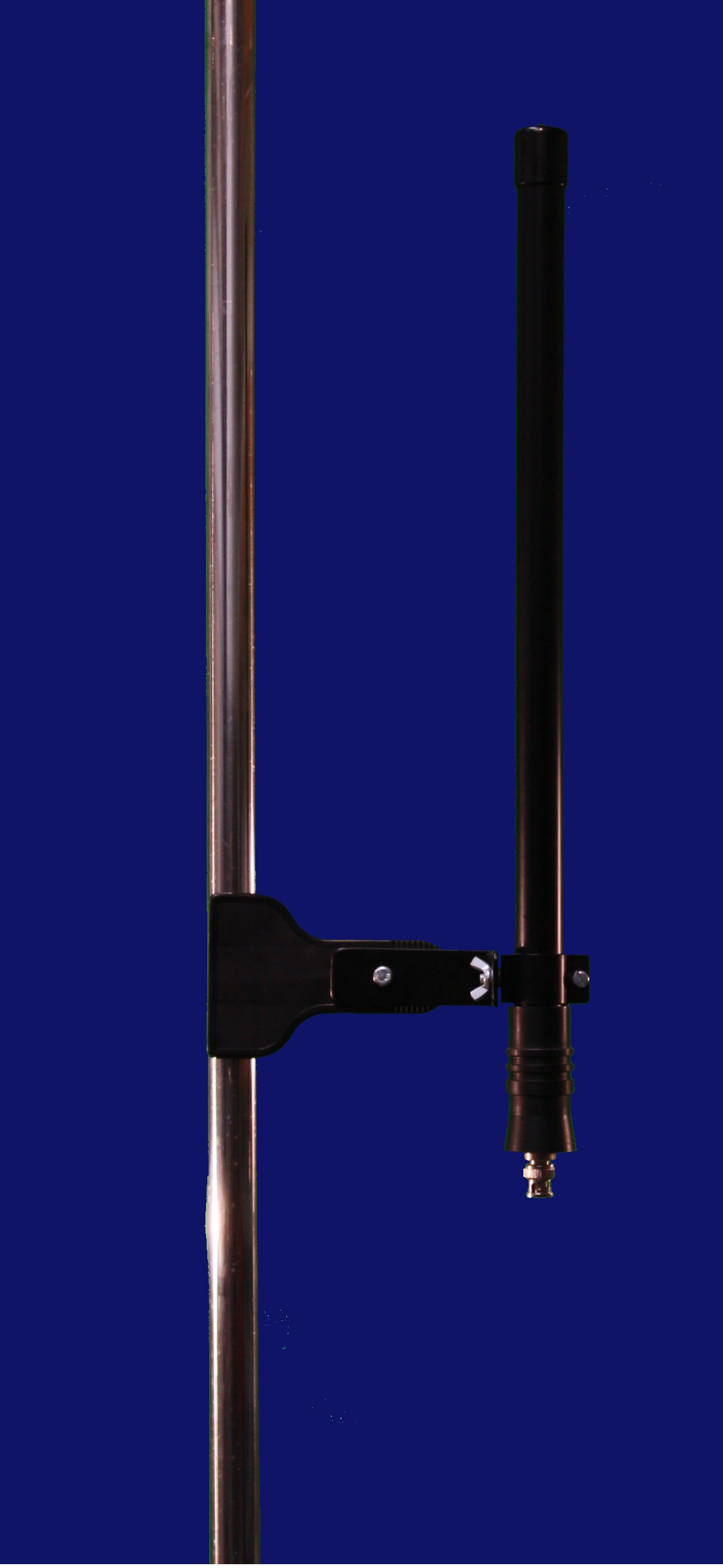

The Dipole without a reflector is omni-directional and is suitable for reception or transmission of up to 50 watts.

Available in black..

Specifications
Placeholder Picture

Frequency Range

150-950 MHz

Impedance

50 Ohms

Bandwidth

As Specified

VSWR

<0 2:1

Maximum Power

50 Watts

Polarisation

Vertical

Gain

0-4 Db

Front to Back Ratio

0-6 Db

Connector

As Specified

Cable Length

As Specified

Weight

240-340g

Length

37-110cm

Width at Widest Point

20cm with Reflector
