Co-Linear Antennas

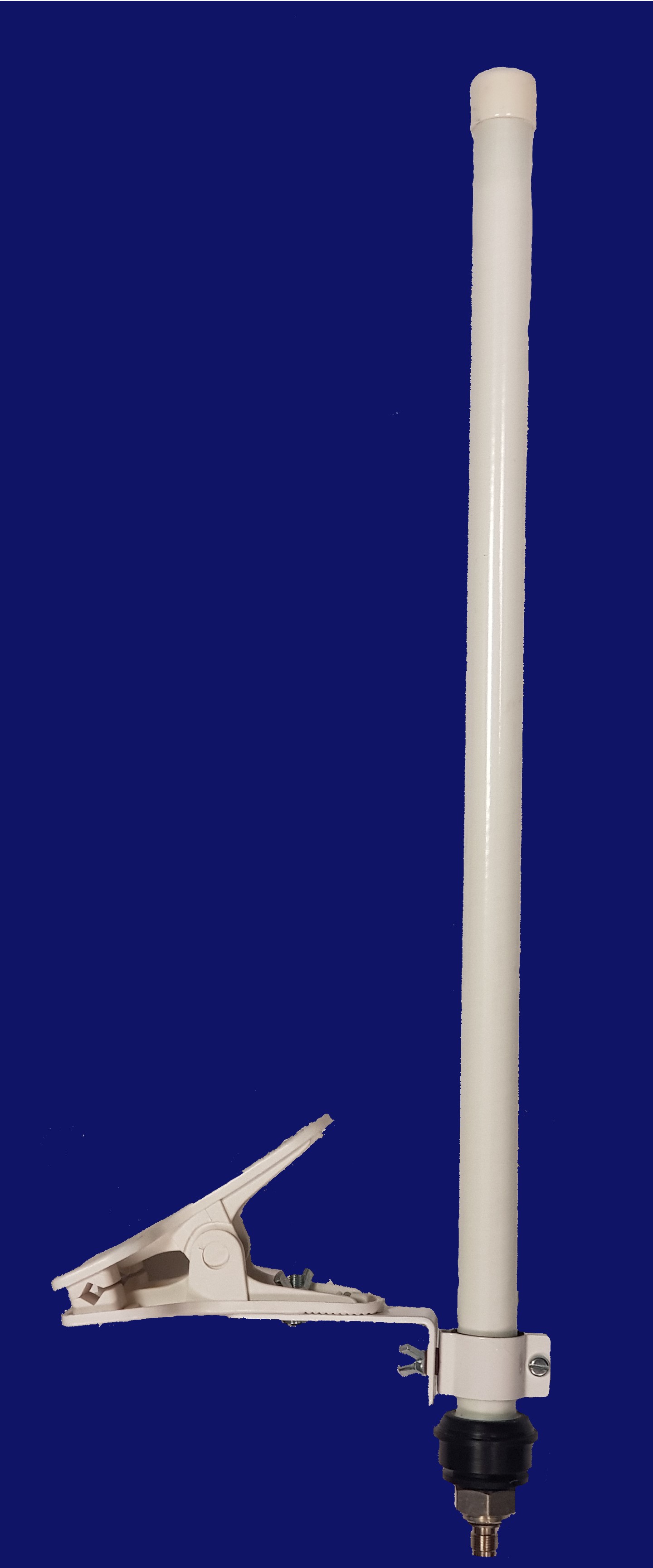

This UHF Co-Linear antenna is omni-directional, constructed to an extremely rugged design and supplied complete with our 1" (2.54cm) spring clamp.

The antenna is terminated with a TNC and comes supplied with a TNC-BNC adapter.

Available in white.

Specifications
Placeholder Picture

Frequency Range

820-920 MHz

Impedance

50 Ohms

Bandwidth

+/- 4 MHz

VSWR

<0 2:1

Maximum Power

50 Watts

Polarisation

Vertical

Gain

0-4 Db

Connector

As Specified

Cable Length

As Specified

Weight

240-340g

Length

37-110cm

Placeholder Picture

"DTAN"



The "DTAN" has been designed as an external antenna. It is most popularly used on the PMR frequencies and has a untiy gain. Supplied with an antenna mount bracket, this antenna can also be manufactured to be tamper-proof.

The Lintec "DTAN" is more commonly supplied with an "N" type female connector concealed under a weatherproof shroud and a 5m extension cable, terminated with a BNC male and "N" type male. However, we can manufacture the antenna with other connectors and cable lengths; please contact our Sales Department with your requirements.
